Key Features
- Professional 18-inch floor-standing drill press designed for woodworking, metalworking, and fabrication
- Powerful 3/4 HP motor handles demanding drilling applications
- 16-speed belt drive system offers adjustable speeds from 170–3000 RPM
- Auto-tensioning belt drive system enables fast and easy speed changes
- Fully adjustable TWINLASER™ projects a bright red crosshair for drilling accuracy
- Full 6-inch quill stroke provides best-in-class drilling depth capacity
- Oversized woodworking table bevels left/right 90° and tilts forward 48°
- Integrated T-slots and removable center insert support clamping and through-drilling
- Flexible LED worklight improves visibility and precision during operation
- Heavy-duty cast construction and large base improve stability and reduce vibration
Product Description

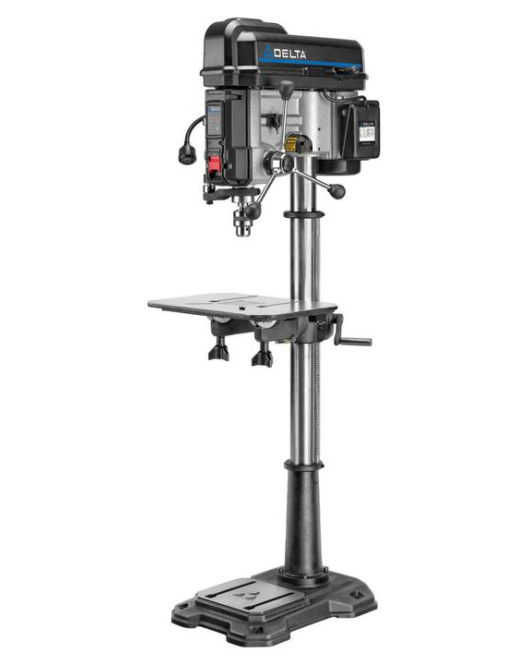

The Delta 18-Inch Laser Drill Press (18-900L) is a premium professional-grade floor drill press engineered for precision woodworking, metal fabrication, and workshop drilling applications. Designed with advanced features specifically for woodworkers and professional craftsmen, the 18-900L combines high drilling capacity, flexible speed control, and enhanced accuracy technologies in a rugged stationary machine platform.
Powered by a heavy-duty 3/4 HP motor, the drill press features a 16-speed auto-tensioning belt drive system that allows users to quickly adjust spindle speeds from 170 to 3000 RPM without complicated manual belt adjustments. The full 6-inch quill stroke provides exceptional drilling depth capacity for large stock, thick materials, and specialty drilling operations.
Delta’s patented oversized woodworking table is designed for versatility and precision. The large rectangular table bevels 90° left and right while tilting forward up to 48° for angled drilling applications. Integrated T-slots allow secure workpiece clamping, while the removable center insert simplifies through-table drilling operations.
The fully adjustable TWINLASER™ alignment system projects a bright red crosshair directly onto the workpiece to indicate drill bit contact position for improved drilling accuracy. A flexible LED worklight further enhances visibility during detailed drilling tasks. The heavy-duty base and cast construction help reduce vibration and improve machine stability during demanding workshop use.
Specifications
| Attribute | Value |
|---|---|
| Brand | Delta |
| Model | 18-900L |
| Product Type | Floor Standing Laser Drill Press |
| Drill Press Size | 18 in. |
| Motor Power | 3/4 HP |
| Voltage | 120V |
| Speed Range | 170 – 3000 RPM |
| Number of Speeds | 16 |
| Quill Stroke | 6 in. |
| Chuck Capacity | 5/8 in. |
| Spindle Taper | Morse #2 |
| Chuck Taper | Jacobs #3 |
| Table Size | 20 in. x 14 in. |
| Table Tilt | Left/Right 0°–90°, Forward 0°–48° |
| Column Diameter | 80 mm |
| Chuck to Table Capacity | 22-1/4 in. |
| Chuck to Base Capacity | 42-1/2 in. |
| Laser System | TWINLASER™ |
| Worklight | Flexible LED |
| Weight | 240 lbs |
| Dimensions | 20 in. W x 28 in. D x 70 in. H |
| Warranty | 5-Year Warranty |
What’s Included
- Delta 18-900L 18-Inch Laser Drill Press
- Adjustable TWINLASER™ System
- Flexible LED Worklight
- Removable Table Insert
- Allen Wrenches
- Drift Key
- Owner’s Manual
Delta 18-Inch Laser Drill Press with LED Worklight & 16-Speed Belt Drive – 18-900L
- Product Code: Delta 18 In. Laser Drill Press
Key Features
- Professional 18-inch floor-standing drill press designed for woodworking, metalworking, and fabrication
- Powerful 3/4 HP motor handles demanding drilling applications
- 16-speed belt drive system offers adjustable speeds from 170–3000 RPM
- Auto-tensioning belt drive system enables fast and easy speed changes
- Fully adjustable TWINLASER™ projects a bright red crosshair for drilling accuracy
- Full 6-inch quill stroke provides best-in-class drilling depth capacity
- Oversized woodworking table bevels left/right 90° and tilts forward 48°
- Integrated T-slots and removable center insert support clamping and through-drilling
- Flexible LED worklight improves visibility and precision during operation
- Heavy-duty cast construction and large base improve stability and reduce vibration
Product Description
The Delta 18-Inch Laser Drill Press (18-900L) is a premium professional-grade floor drill press engineered for precision woodworking, metal fabrication, and workshop drilling applications. Designed with advanced features specifically for woodworkers and professional craftsmen, the 18-900L combines high drilling capacity, flexible speed control, and enhanced accuracy technologies in a rugged stationary machine platform.
Powered by a heavy-duty 3/4 HP motor, the drill press features a 16-speed auto-tensioning belt drive system that allows users to quickly adjust spindle speeds from 170 to 3000 RPM without complicated manual belt adjustments. The full 6-inch quill stroke provides exceptional drilling depth capacity for large stock, thick materials, and specialty drilling operations.
Delta’s patented oversized woodworking table is designed for versatility and precision. The large rectangular table bevels 90° left and right while tilting forward up to 48° for angled drilling applications. Integrated T-slots allow secure workpiece clamping, while the removable center insert simplifies through-table drilling operations.
The fully adjustable TWINLASER™ alignment system projects a bright red crosshair directly onto the workpiece to indicate drill bit contact position for improved drilling accuracy. A flexible LED worklight further enhances visibility during detailed drilling tasks. The heavy-duty base and cast construction help reduce vibration and improve machine stability during demanding workshop use.
Specifications
| Attribute | Value |
|---|---|
| Brand | Delta |
| Model | 18-900L |
| Product Type | Floor Standing Laser Drill Press |
| Drill Press Size | 18 in. |
| Motor Power | 3/4 HP |
| Voltage | 120V |
| Speed Range | 170 – 3000 RPM |
| Number of Speeds | 16 |
| Quill Stroke | 6 in. |
| Chuck Capacity | 5/8 in. |
| Spindle Taper | Morse #2 |
| Chuck Taper | Jacobs #3 |
| Table Size | 20 in. x 14 in. |
| Table Tilt | Left/Right 0°–90°, Forward 0°–48° |
| Column Diameter | 80 mm |
| Chuck to Table Capacity | 22-1/4 in. |
| Chuck to Base Capacity | 42-1/2 in. |
| Laser System | TWINLASER™ |
| Worklight | Flexible LED |
| Weight | 240 lbs |
| Dimensions | 20 in. W x 28 in. D x 70 in. H |
| Warranty | 5-Year Warranty |
What’s Included
- Delta 18-900L 18-Inch Laser Drill Press
- Adjustable TWINLASER™ System
- Flexible LED Worklight
- Removable Table Insert
- Allen Wrenches
- Drift Key
- Owner’s Manual
- Viewed: 111
- Availability: In Stock
$1,699.00
